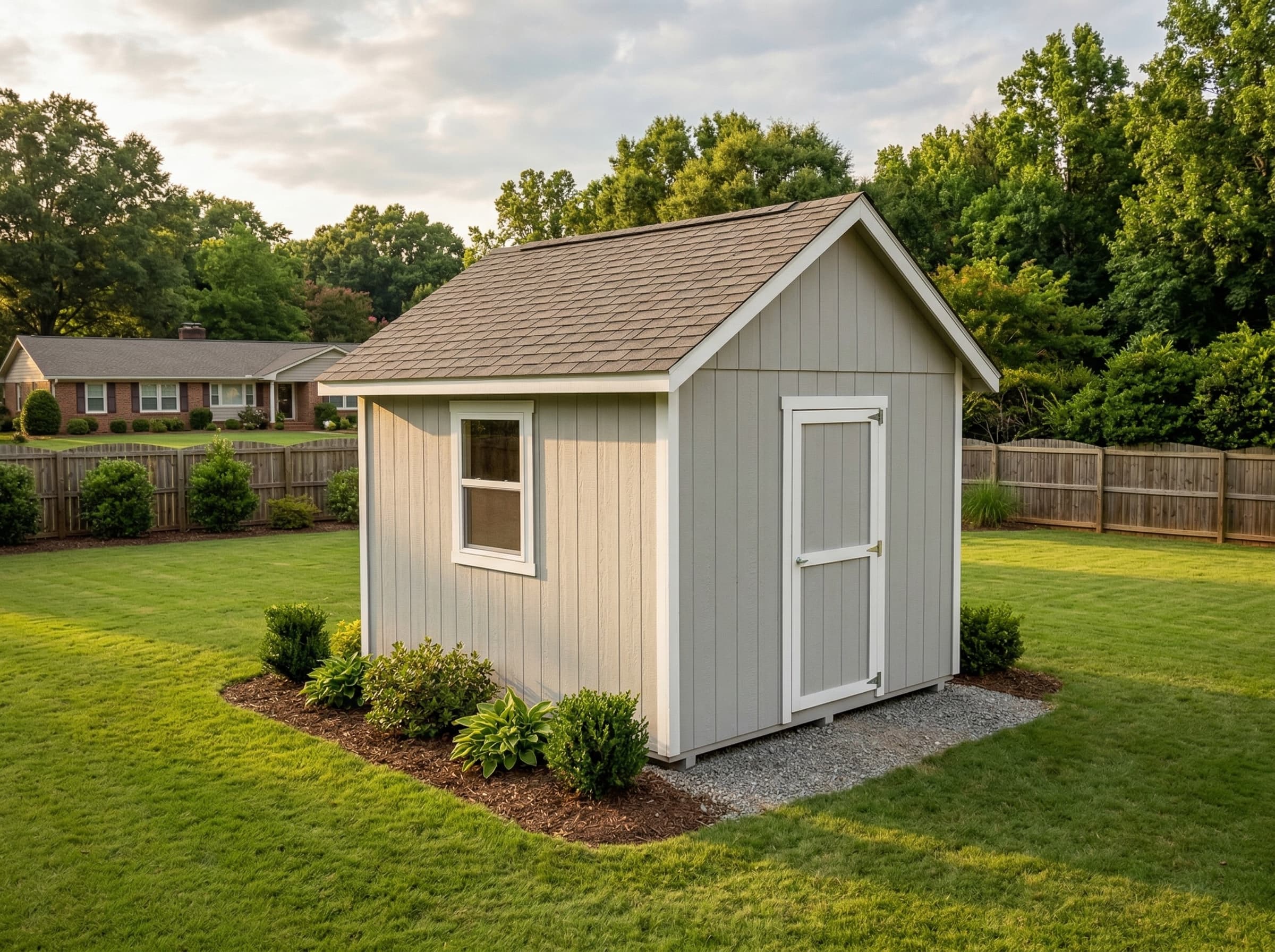

10×12 Gable Shed Plans

About This Design

The 10×12 is the most popular shed size in America for good reason. At 120 square feet, it hits the sweet spot between a compact garden shed and a full-size workshop — big enough to store a riding mower, workbench, and wall-hung tools without wasting yard space. Most municipalities draw their permit threshold at 100 or 200 square feet, and at 120 this design clears the lower limit while staying comfortably under the higher one.

This gable design uses a standard 6/12 pitch that sheds rain and snow effectively while keeping the peak height under 13 feet — well within most HOA and setback rules. The 10-foot width means every rafter, joist, and header can be cut from standard 10- or 12-foot lumber, minimizing waste and trips to the yard.

With 8-foot walls and the gable peak above, there is genuine room to add a loft across the back wall for seasonal storage. A 36-inch entry door on the front wall handles lawn equipment, and windows on the back and side walls provide cross-ventilation and natural light so you are not working in the dark.

Key Features

• 120 sq ft floor area — fits riding mower, workbench, and shelving
• 6/12 gable roof with 12" overhang on all sides
• 8' walls with room for a loft at the gable peak
• All framing from standard 10' and 12' lumber lengths
• Single entry door (36") and two windows for cross-ventilation
• T1-11 siding and asphalt shingle roofing (customizable)

Build Notes

A 10×12 sits comfortably on a gravel pad with three 4×6 pressure-treated skids running the 12-foot direction. Space the skids at 5 feet on center so floor joists span only 5 feet — 2×6 joists at 16-inch spacing handle that easily with no bounce. Frame with 2×4 studs at 16 inches on center. At 10 feet wide, 2×6 rafters at 24-inch spacing are more than adequate for a 6/12 pitch, even in moderate snow zones up to 30 psf ground load.

For the gable ends, you will need cripple studs above the top plate following the roof slope — the engine calculates their exact lengths and generates cut dimensions so nothing is left to guesswork. Use California corners at all four wall intersections for solid nailing surfaces when hanging drywall or shiplap later. The 36-inch door header is a doubled 2×6, and window headers are doubled 2×4 — standard sizing for a non-load-bearing opening at this width.

Best For

This is the go-to size for homeowners who need a dedicated storage building without dominating the backyard. A 10×12 comfortably holds a riding mower or push mower with room to spare, plus a 2-foot-deep shelf along the back wall for paint cans, garden chemicals, and hand tools. Hang a pegboard on the side wall for rakes and shovels, and you still have clear floor space to move around. It also works well as a potting shed, small hobby shop, or even a secure storage for bicycles and sporting equipment.
