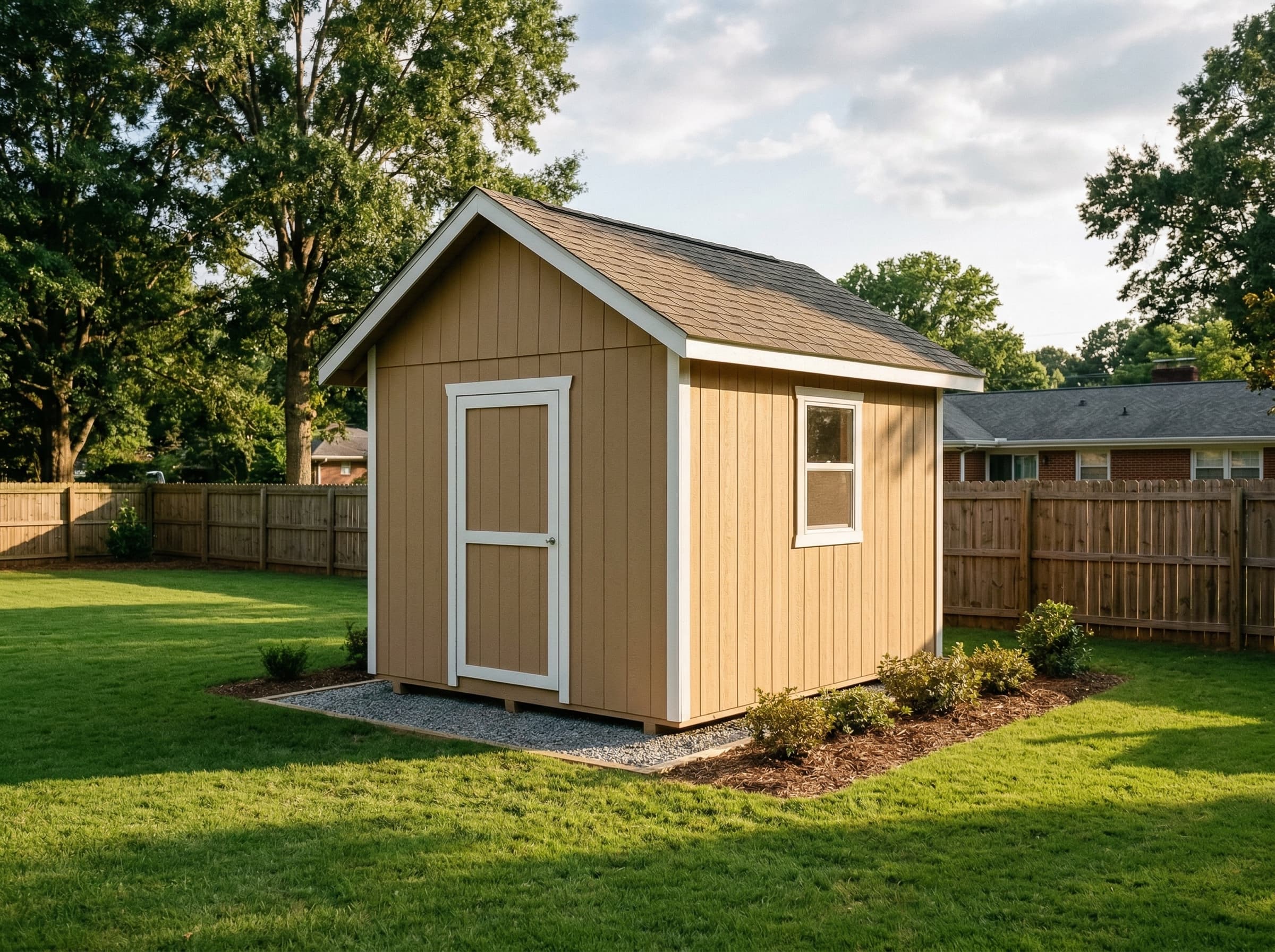

10×14 Gable Shed Plans
Framing drawings, cut list, and materials list for a 10×14 gable shed — the tweener size that uses standard lumber perfectly.
Loading 3D preview…
Floor Area
140 sq ft
Dimensions
10′ × 14′
Wall Height
8′
Roof Pitch
6/12
About This Design
The 10×14 is the in-between size that the big-box stores skip — and that is exactly why it works so well. At 140 square feet, it splits the difference between a cramped 10×12 and an expensive 12×16, giving you 20 more square feet of depth without widening the foundation or changing your lumber order. The 14-foot depth means a workbench on the back wall and a parked mower in front with daylight between them.
The 10-foot width keeps every rafter, joist, and header cuttable from standard 10- and 12-foot boards — the side wall plates are the only pieces that need 14-foot stock, which is a standard length at every lumber yard. This produces one of the most waste-efficient cut lists in our catalog.
Three windows — rear, east, and west — light the interior from three sides. The 6/12 gable roof peaks at roughly 13 feet with 8-foot walls, leaving room for a loft across the back gable end and an overhead shop light on a pendant cord.
Key Features
- 140 sq ft floor area — the sweet spot between 10×12 and 12×16
- 14' depth separates equipment storage from workspace naturally
- 10' width keeps all framing from standard 10' and 12' boards
- Windows on three walls for natural light throughout the day
- 6/12 gable roof with room for a back-wall loft
- One of the most waste-efficient cut lists in the catalog
Build Notes
A 10×14 sits on three 4×6 pressure-treated skids running the 14-foot direction, spaced at 5 feet on center. Floor joists are 2×6 at 16-inch spacing spanning 5-foot bays — identical to a 10×12 floor system with the same stiffness.
Frame with 2×4 studs at 16 inches on center. The 36-inch door header is a doubled 2×6, window headers are doubled 2×4s. At 10 feet wide, 2×6 rafters at 24-inch spacing handle the 6/12 pitch with room to spare. The 14-foot side walls use standard 14-foot plates without splicing.
The extra 2 feet of depth over a 10×12 adds exactly one more stud bay per side wall and two more floor joists. Material cost increase is modest — roughly $200–$300 — for a meaningful gain in usable space.
Best For
The 10×14 is for homeowners who tried to fit their gear in a 10×12 and came up 2 feet short. A riding mower parks in the front half with the deck down, and the back 4–5 feet holds a workbench, shelf unit, and pegboard tool wall without overlap. It also works as a small boat storage shed for kayaks, canoes, and fishing gear, or a dedicated garden shed with a potting bench, seed-starting shelves, and room for a wheelbarrow by the door.
Frequently Asked Questions
How much does a 10×14 shed cost to build?
A 10×14 gable shed typically costs between $2,000 and $3,800 in materials — roughly $200–$300 more than a 10×12 for 20 extra square feet. The estimate shown uses Charlotte, NC area pricing as a baseline.
Do I need a permit for a 10×14 shed?
At 140 square feet, most jurisdictions require a building permit. This size clears the 100-square-foot exemption but stays under the 200-square-foot threshold where more stringent requirements often kick in.
What materials are included in the 10×14 shed plans?
The plans include a complete framing package with cut list, materials BOM covering lumber, sheathing, roofing, siding, fasteners, and hardware. The interactive 3D preview lets you see the finished design before you build.
