12×12 Gable Shed Plans

About This Design

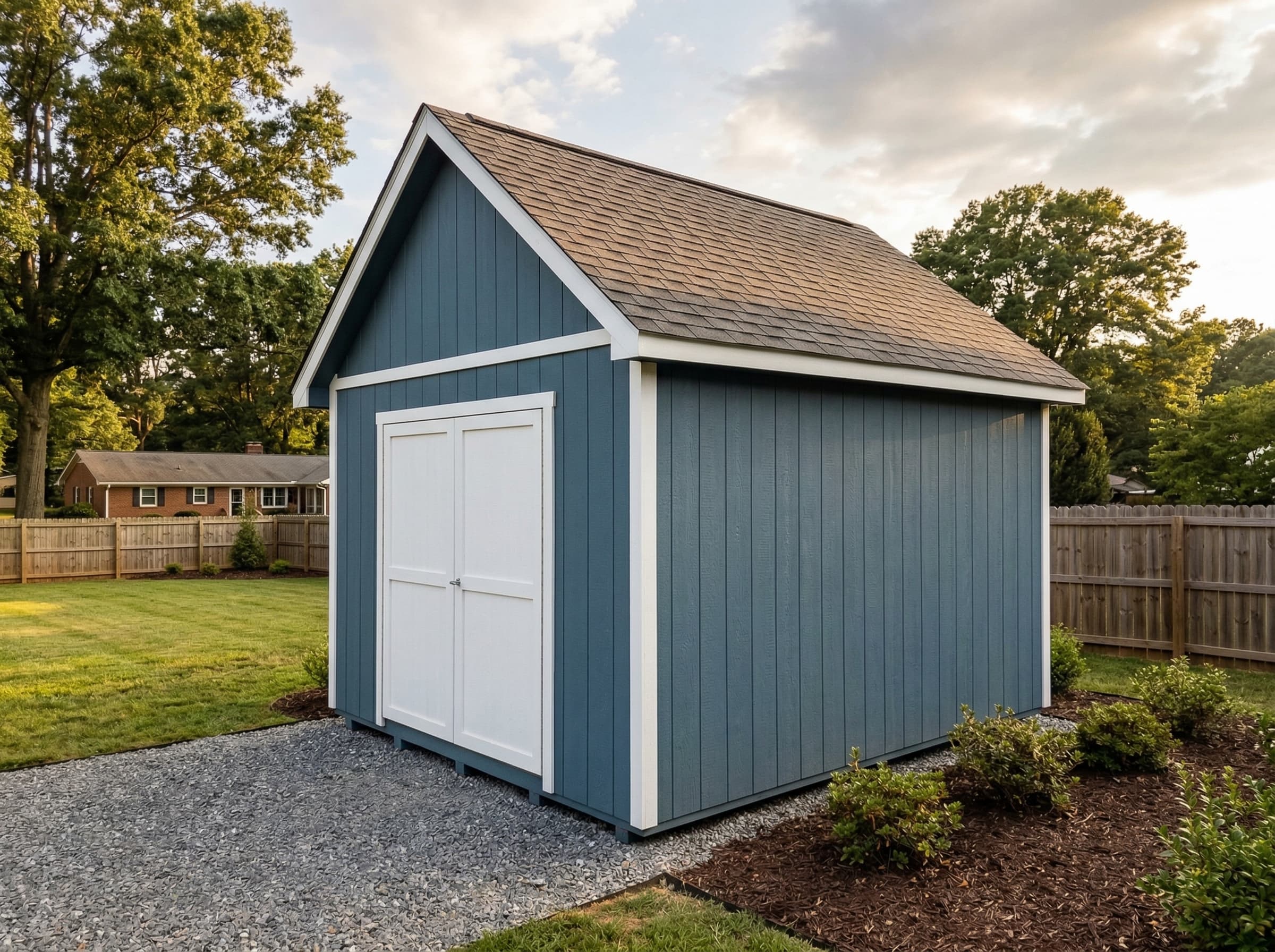

The 12×12 is a square shed that gives you the widest possible floor for the shortest depth — 144 square feet of usable space that can be arranged in any direction without a long, narrow floor plan dictating your layout. The square footprint means you can center a workbench, park equipment, or build shelving along any wall without wasting the long dimension on an aisle.

At 12 feet wide, the gable roof peaks at roughly 14 feet with 8-foot walls and a 6/12 pitch. That peak height opens up a full-width loft opportunity across either gable end for seasonal storage. The symmetrical profile looks balanced from every angle, which matters when the shed sits in a visible part of the yard.

A 64-inch double door on the front wall handles riding mowers, sheet goods, and furniture easily. The rear window and side window create diagonal cross-ventilation that moves air through the entire space without dead spots.

Key Features

• 144 sq ft square floor plan — maximum flexibility for layout
• 64" double-door entry on front wall for equipment and sheet goods
• 6/12 gable roof with ridge at ~14' — loft-ready at either gable end
• 8' walls with room for wall-hung cabinets and tall shelving
• Windows on rear and side walls for diagonal cross-ventilation
• All framing from standard 12' lumber lengths — minimal waste

Build Notes

A 12×12 square footprint sits on four 4×6 pressure-treated skids running 12 feet, spaced at 4 feet on center. Floor joists are 2×6 at 16-inch spacing spanning 4-foot bays — solid and bounce-free even under a loaded workbench.

Frame walls with 2×4 studs at 16 inches on center. The 64-inch double-door header is a 3-ply 2×10 or LVL — the engine sizes this based on the span. At 12 feet wide, use 2×6 rafters at 24-inch spacing for the 6/12 pitch. Every rafter cuts from a standard 12-footer with overhang to spare.

Because the building is square, the gable-end framing is the same on both ends. This means you can batch-cut all gable cripple studs in pairs — the engine generates identical cut lists for both walls, cutting your layout time in half.

Best For

The 12×12 works as a multi-purpose building — half workshop and half storage, or dedicated to either function. A 4-foot-deep workbench along the back wall leaves an 8-foot-deep clear area in front for parking a mower or assembling projects. The square plan also makes it one of the best choices for a hobby shop: woodworking, pottery, or craft space where you move around your project rather than along a narrow aisle.
