8×12 Gable Shed Plans

About This Design

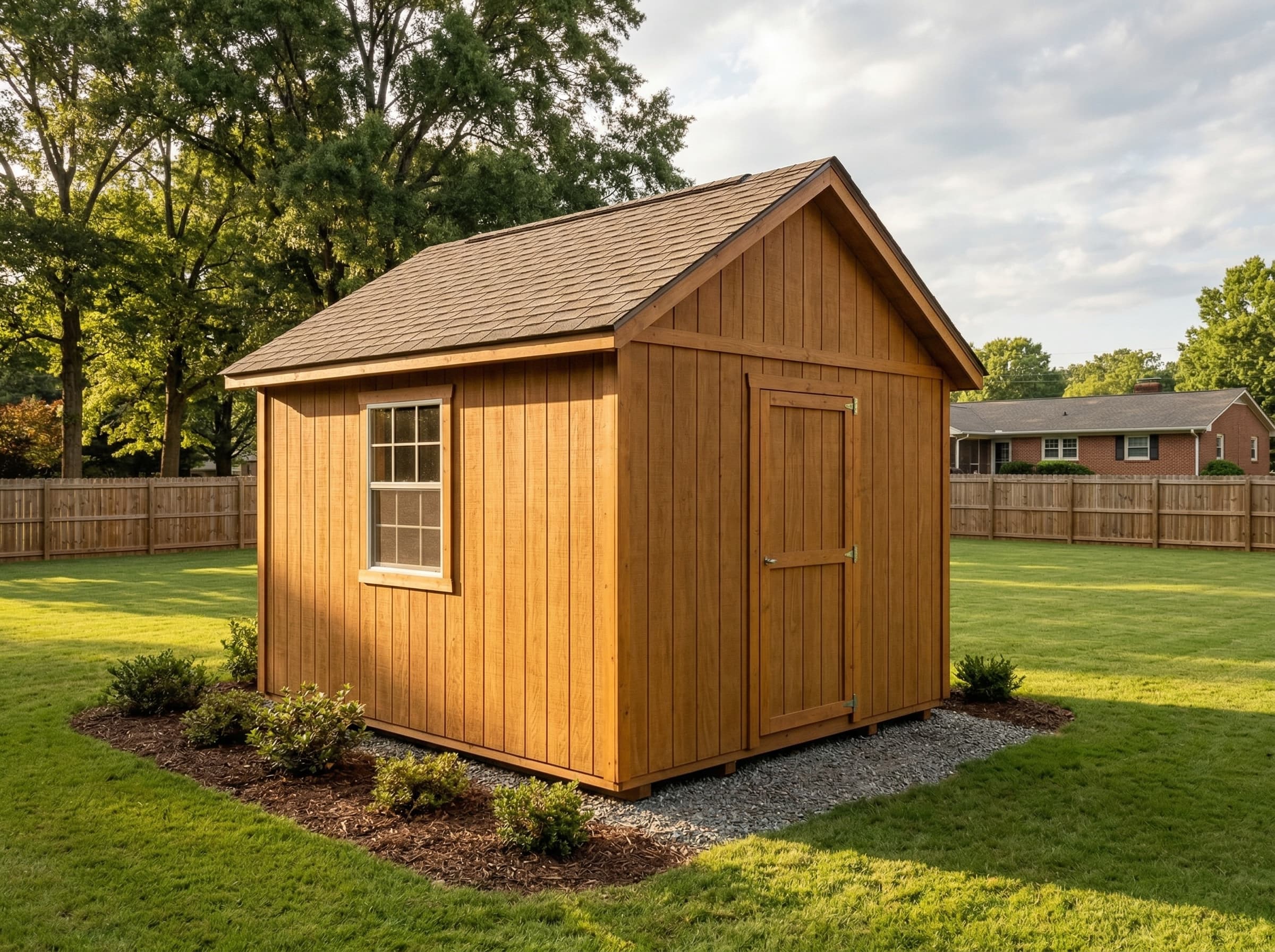

The 8×12 gable shed is the narrow-lot workhorse — 96 square feet of storage in a footprint that fits side yards, fence lines, and tight setback zones where wider buildings cannot go. The 8-foot width keeps the structure proportional to a residential lot while the 12-foot depth provides genuine walk-in storage depth for long-handled tools, lumber, and seasonal equipment.

At 96 square feet, this design falls just under the 100-square-foot permit exemption threshold in many jurisdictions — though you should always verify locally. The 5/12 roof pitch produces a ridge height of approximately 10 feet 4 inches with 7-foot walls, which clears most accessory structure height limits with room to spare.

Two windows — one on the rear wall and one on the side — create a cross-ventilation path that keeps the interior dry and comfortable. The single 36-inch door handles everything from wheelbarrows to rolled insulation without issue.

Key Features

• 96 sq ft floor area — often under the permit-exempt threshold
• 5/12 gable roof keeps total height around 10'4" with 7' walls
• Narrow 8' width fits side yards and tight setback zones
• 12' depth provides real walk-in storage for long equipment
• 36" door plus windows on rear and side for cross-ventilation
• All framing from standard 8' and 12' lumber lengths

Build Notes

An 8×12 sits on two 4×6 pressure-treated skids running the 12-foot direction, spaced at roughly 6 feet on center. Floor joists are 2×4 at 16-inch spacing — at a 6-foot span, 2×4s are more than adequate and keep the material cost low.

Frame walls with 2×4 studs at 16 inches on center. At 8 feet wide, 2×6 rafters at 24-inch spacing handle a 5/12 pitch easily. Each rafter pair cuts from a single 10-foot board with the overhang included. The door header is a doubled 2×6 and the window headers are doubled 2×4s.

The narrow width means each gable-end triangle is a compact piece of framing — typically three cripple studs per side. Sheath each gable end with a single 4×8 sheet of OSB trimmed to the peak angle.

Best For

The 8×12 is the right size for homeowners with narrow lots or strict setback requirements who still need proper storage. It comfortably holds a push mower, string trimmer, shelving, and a modest workbench. The 12-foot depth makes it work for kayak or canoe storage laid lengthwise, and it handles lumber and pipe stock that would not fit in a shorter shed. It also works well as a dedicated garden tool shed adjacent to a larger garage.
