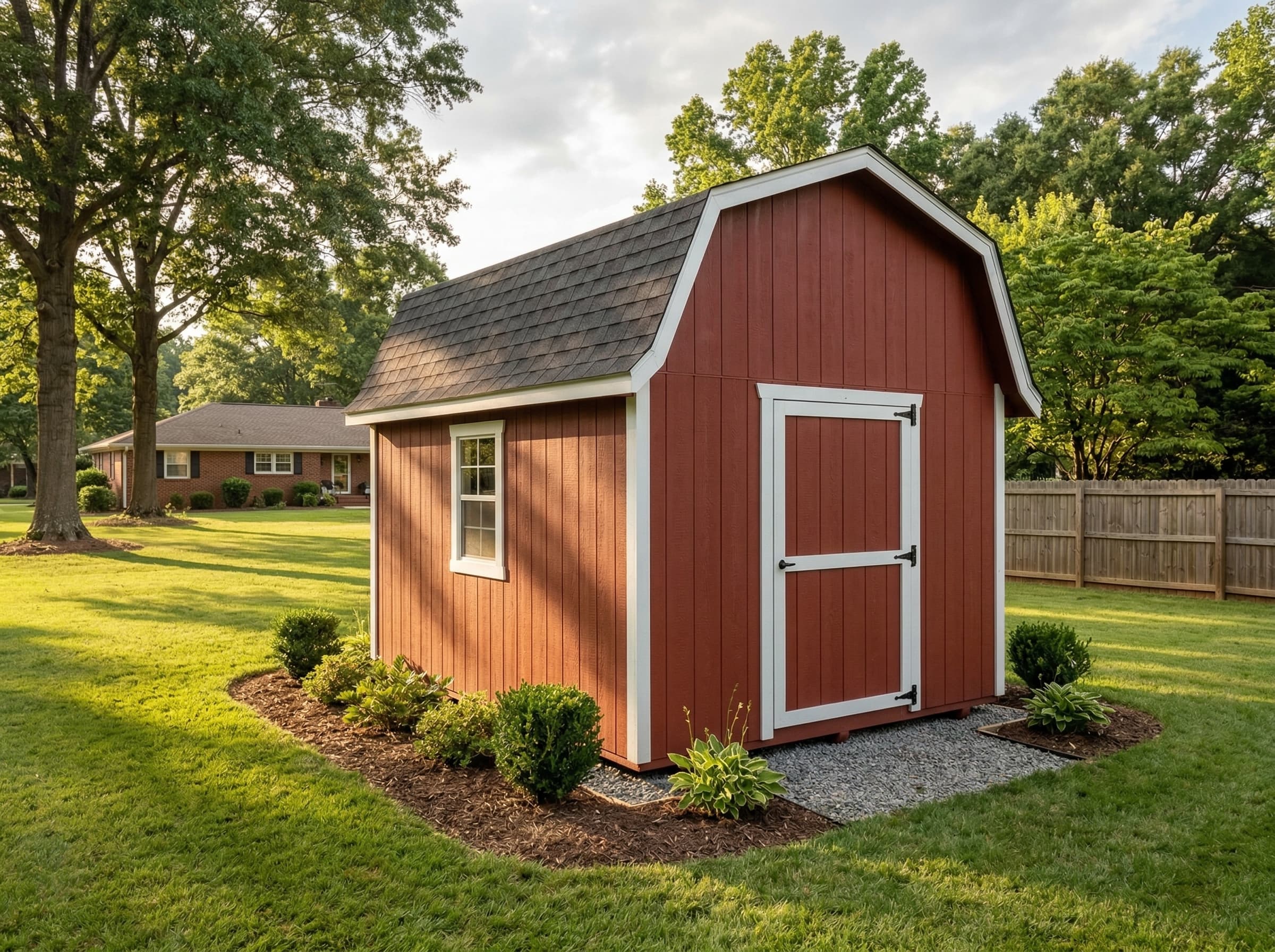

10×12 Gambrel Barn Shed Plans

About This Design

A gambrel roof transforms a modest 10×12 footprint into a building that punches well above its floor area. The double-pitched profile — a shallow lower slope meeting a steeper upper slope — creates a tall attic cavity above the knee walls that rivals the floor-level storage in usable space. On a 10-foot-wide building, the gambrel ridge sits roughly 6 feet above the sidewall top plate, giving you a loft floor-to-ceiling height that works comfortably for seated storage or a small hobby nook.

The barn aesthetic is timeless and fits naturally in residential backyards where a plain box shed would look out of place. The 7-foot sidewalls keep the overall height reasonable while the roof geometry adds visual mass without actually using more yard space than a standard gable design.

At 120 square feet on the ground floor, this design handles the same lawn-and-garden equipment as a conventional gable shed. The real advantage is vertical: seasonal gear, holiday decorations, and rarely-used items migrate up to the loft, leaving the main floor completely open for the tools and machines you reach for every weekend.

Key Features

• 120 sq ft ground floor — full loft above adds 60+ sq ft of seasonal storage
• Classic gambrel barn profile fits residential neighborhoods and HOA requirements
• 7' sidewalls with loft knee walls — standing headroom at the ridge
• 36" entry door centered on front wall for easy equipment access
• Window on back and side wall — cross-ventilation and natural light in the loft
• All framing from standard 10' and 12' dimensional lumber

Build Notes

The gambrel roof is framed with two rafter segments per side joined at a horizontal knee-wall top plate. The lower rafter runs at roughly 60 degrees and the upper at about 30 degrees — the engine calculates the precise intersection and generates all four rafter lengths and their bird's-mouth cuts. Build the knee walls first on top of the main top plate, then frame each half-truss as a unit on the ground and raise them as assemblies.

Floor framing matches a standard gable shed: three 4×6 pressure-treated skids running the 12-foot direction, 2×6 floor joists at 16-inch spacing. Sidewall studs are 2×4 at 16 inches on center; 7-foot walls use precut studs straight from the yard with no trimming. The lower gambrel rafter bears on an outboard ledger nailed to the exterior face of the sidewall top plate — this detail prevents lateral thrust from spreading the walls over time. Use metal hurricane ties at every rafter seat.

Best For

The 10×12 gambrel shed suits homeowners who want maximum storage without a large ground footprint. Ground-floor space holds a riding mower or ATV with tools along the walls. The loft is ideal for bulky but infrequently used items: camping gear, coolers, extra lumber, holiday inflatables, and off-season furniture cushions. The barn look also makes this a natural fit for a backyard chicken coop conversion or a small potting and seed-starting studio with a workbench under the loft overhang.
