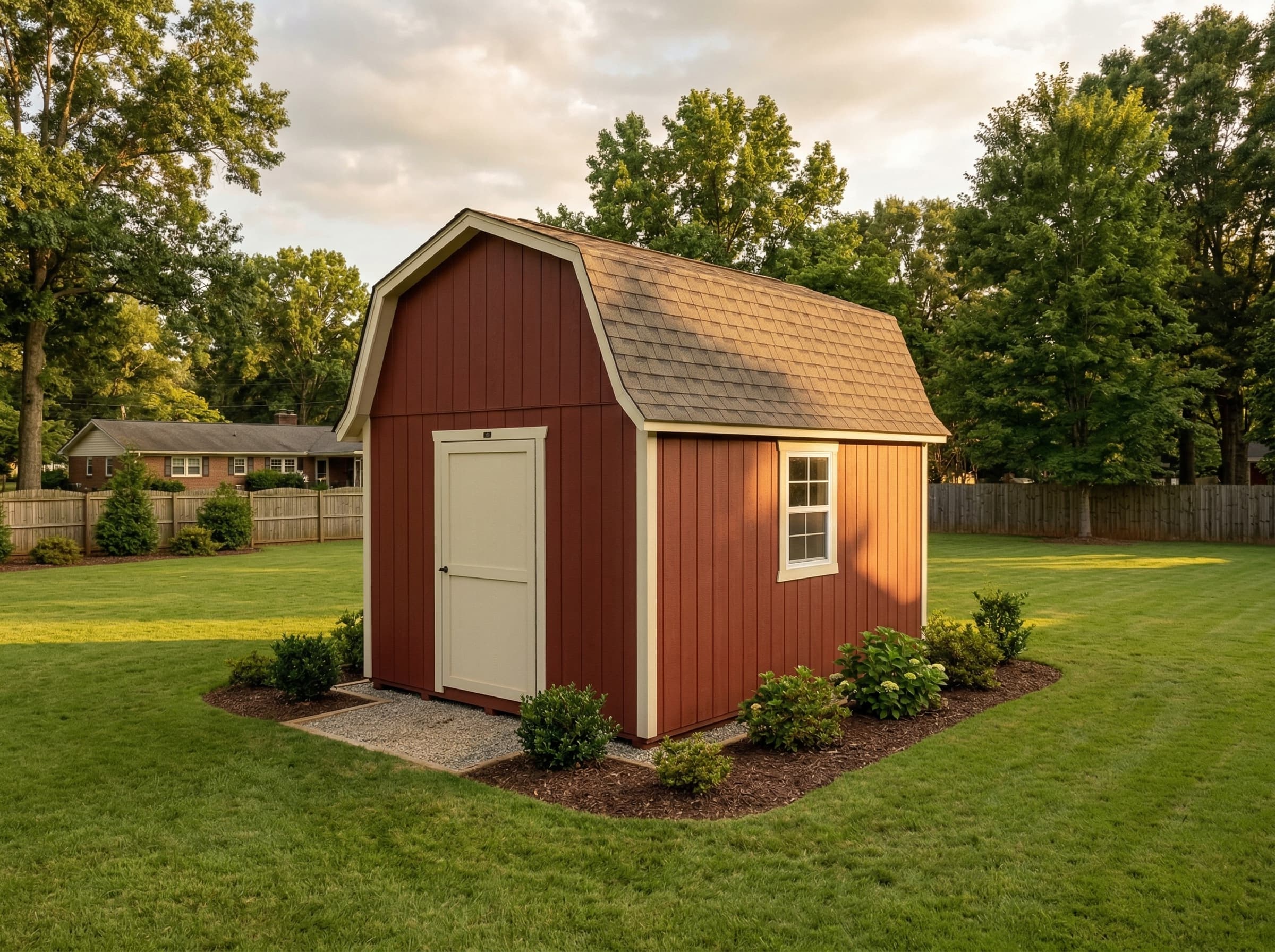

12×16 Gambrel Barn Shed Plans
A full-size barn shed with 192 sq ft on the ground floor and a spacious loft — the most storage-per-square-foot design we offer.
Loading 3D preview…
Floor Area
192 sq ft
Dimensions
12′ × 16′
Wall Height
8′
Roof Pitch
6/12
About This Design
The 12×16 gambrel barn is the flagship storage building for homeowners who want every cubic foot working for them. At 192 square feet on the ground floor plus a full-width loft above, this design provides more usable storage than many one-car garages — without the permitting complexity of a permanent structure in most jurisdictions.
The 12-foot width is the sweet spot for a gambrel barn. It produces a loft floor roughly 6 feet wide with 5-foot-plus standing headroom at the center, making it genuinely usable space rather than a crawl-in cavity. The 16-foot depth means both the ground floor and loft have enough room to organize — deep enough for a workbench along the back wall and shelving on both sides without blocking the central aisle.
Eight-foot sidewalls give the gambrel its characteristic tall barn profile and allow a 64-inch double door on the front wall wide enough to drive a riding mower, ATV, or motorcycle straight in. Windows on both side walls provide symmetrical natural light that illuminates both floor levels, and they create a natural cross-draft to prevent moisture buildup that shortens tool life.
Key Features
- 192 sq ft ground floor — plus a full-width loft above
- 64" double-door entry handles riding mowers, ATVs, and motorcycles
- 8' sidewalls — loft provides 5'+ center headroom
- Windows on both side walls for balanced light and cross-ventilation
- Classic gambrel profile — looks like a proper barn, not a box
- Framing engineered from standard 12' and 16' dimensional lumber
Build Notes
At 12 feet wide, a gambrel roof generates real lateral thrust that must be handled at the foundation. Use four 4×6 pressure-treated skids running the 16-foot direction with a dedicated center skid — floor joists are 2×6 at 16-inch spacing. Anchor the skids to concrete piers or a gravel pad with anchor bolts to resist any uplift from the tall roof profile.
Sidewall studs are 2×4 at 16 inches on center. The gambrel knee walls sit on top of the main top plate and are typically 24 to 30 inches tall — the engine calculates the precise height based on your gambrel geometry. Frame each gambrel truss as a complete unit on the ground: lower rafter, upper rafter, and collar tie forming a rigid triangle. Raise trusses at 24-inch spacing and sheathe immediately to stabilize. The 64-inch double-door opening requires a doubled 2×8 header on each door king stud — size up to 2×10 if using engineered lumber at this span.
Best For
This is the right choice when a standard shed runs out of room but a full garage is not practical. The ground floor handles a riding mower, snowblower, and a workbench with tool storage without feeling crowded. The loft is purpose-built for bulk seasonal storage: holiday decorations, camping gear, kayaks on wall-mounted cradles, and off-season furniture cushions. Hobby farmers use this as a compact livestock shelter with hay storage in the loft. Garden enthusiasts have built it as a combination potting shed and greenhouse by replacing the side windows with polycarbonate glazing panels.
Frequently Asked Questions
How much does a 12×16 shed cost to build?
A 12×16 gambrel barn shed typically costs between $3,500 and $6,500 in materials depending on siding and roofing choices. The gambrel roof adds roughly $300–$500 in framing lumber over a comparable gable design but eliminates the need for a separate loft floor structure. Estimate reflects Charlotte, NC area pricing.
Do I need a permit for a 12×16 shed?
At 192 square feet, a building permit is required in most municipalities. The tall gambrel profile also means total structure height exceeds 14 feet in many configurations — verify the accessory structure height limit in your zoning code before finalizing wall height. Most residential zones allow accessory structures up to 15 or 16 feet total height.
What materials are included in the 12×16 shed plans?
The plans include a complete framing package with cut list, materials BOM covering lumber, sheathing, roofing, siding, fasteners, and hardware. The interactive 3D preview lets you see the finished design before you build.
