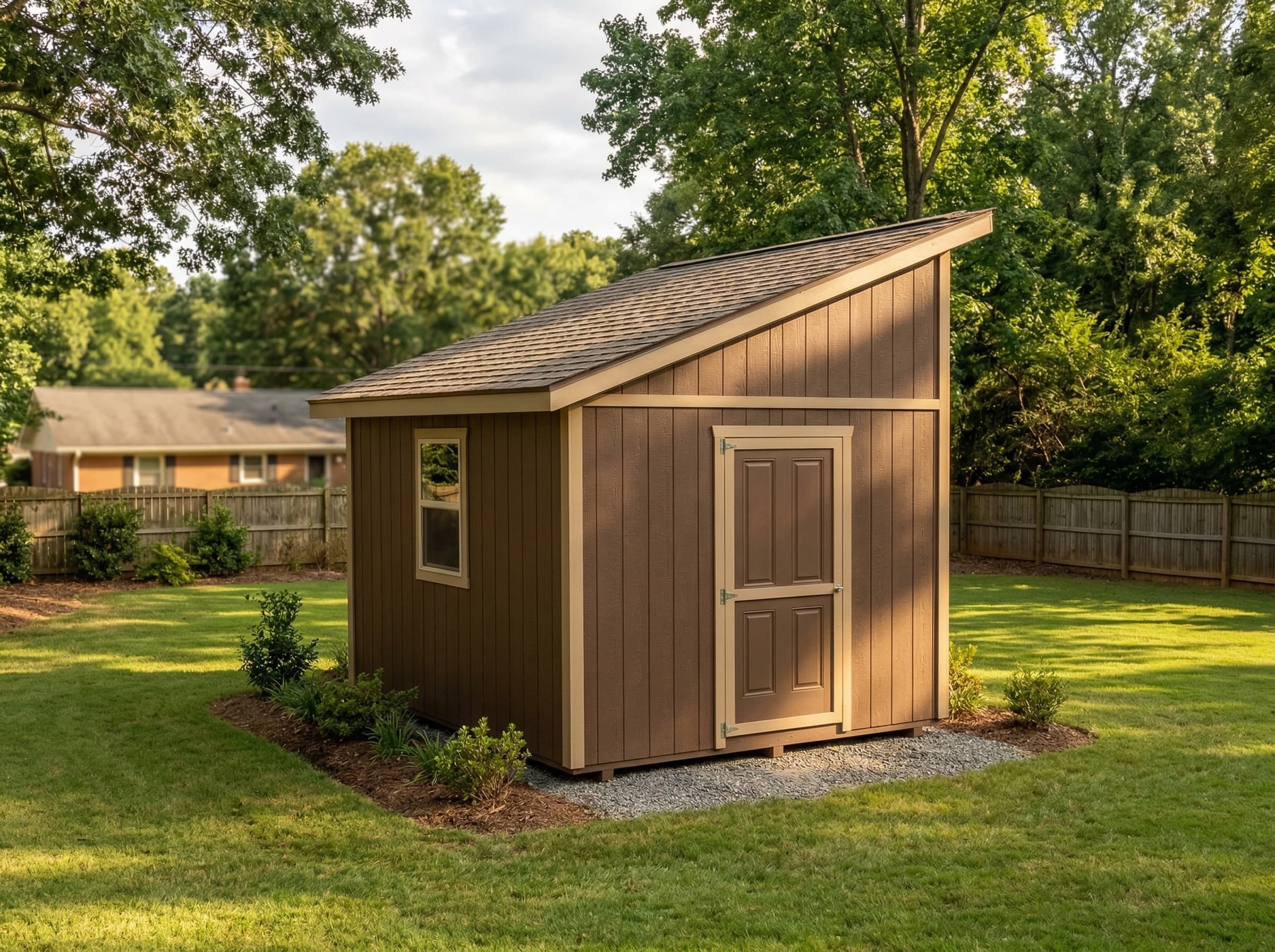

12×16 Lean-To Shed Plans
Framing drawings, cut list, and materials list for a large 12×16 lean-to shed with a low, unobtrusive profile.
Loading 3D preview…
Floor Area
192 sq ft
Dimensions
12′ × 16′
Wall Height
8′
Roof Pitch
3/12
About This Design
A 12×16 lean-to is one of the largest single-slope sheds that still reads as an extension of your property rather than a standalone building. At 192 square feet, it provides the same floor area as a standard 12×16 gable workshop but with a dramatically lower rear wall that tucks against a fence, garage, or property line without dominating the view.
The 3/12 pitch across a 12-foot depth drops the rear wall to approximately 5 feet from the 8-foot front wall. This creates a usable working zone at the front with full standing headroom and a lower storage zone at the back that suits shelving, bins, and equipment that does not need vertical clearance.
The 64-inch double door at center-front handles riding mowers, ATVs, and sheet goods. Windows on both side walls provide balanced lighting without cutting into the high front wall or low rear wall, where solid wall space is most valuable for hanging tools and mounting shelves.
Key Features
- 192 sq ft floor area with low-profile single-slope roof
- 3/12 pitch — rear wall at ~5' tucks against fences and structures
- 8' front wall for full headroom at the working entry zone
- 64" double-door entry handles wide equipment and sheet goods
- Side windows on both walls for balanced natural light
- Natural front-to-back zoning: work up front, store in back
Build Notes
A 12×16 lean-to needs four 4×6 pressure-treated skids running the 16-foot direction, spaced at 4 feet on center. Floor joists are 2×6 at 16-inch spacing spanning 4-foot bays.
The front wall is framed at 8 feet and the rear wall at approximately 5 feet. Both walls stand independently, and the rafters bridge the gap. At 12 feet of span on a 3/12 pitch, use 2×8 rafters at 24-inch spacing — the low pitch means snow accumulates longer before shedding, so size rafters for the full ground snow load.
The sloped ceiling means the rear wall top plate sits lower than the front. Frame all studs from the same bottom plate; the engine generates the different stud heights for front and rear walls automatically. Use blocking between rafters at the front top plate to resist the outward thrust that a single-slope roof generates.
Best For
The 12×16 lean-to excels against an existing structure — alongside a garage, behind a house, or against a tall privacy fence. The low rear profile means it does not block light or sightlines from the adjacent building. Equipment storage goes in the back half where the ceiling is low, and the front half with 8-foot ceilings serves as a workspace. It works well as a firewood storage building, a landscape equipment bay, or a covered parking area for ATVs and golf carts.
Frequently Asked Questions
How much does a 12×16 shed cost to build?
A 12×16 lean-to shed typically costs between $2,500 and $4,800 in materials. The single-slope roof uses less lumber than a gable of the same footprint, but the heavier rafters for the low pitch offset some of that savings. The estimate shown uses Charlotte, NC area pricing as a baseline.
Do I need a permit for a 12×16 shed?
At 192 square feet, a building permit is required in most jurisdictions. Lean-to sheds placed adjacent to existing structures may be classified as additions in some areas, triggering additional requirements. Verify with your building department before construction.
What materials are included in the 12×16 shed plans?
The plans include a complete framing package with cut list, materials BOM covering lumber, sheathing, roofing, siding, fasteners, and hardware. The interactive 3D preview lets you see the finished design before you build.
