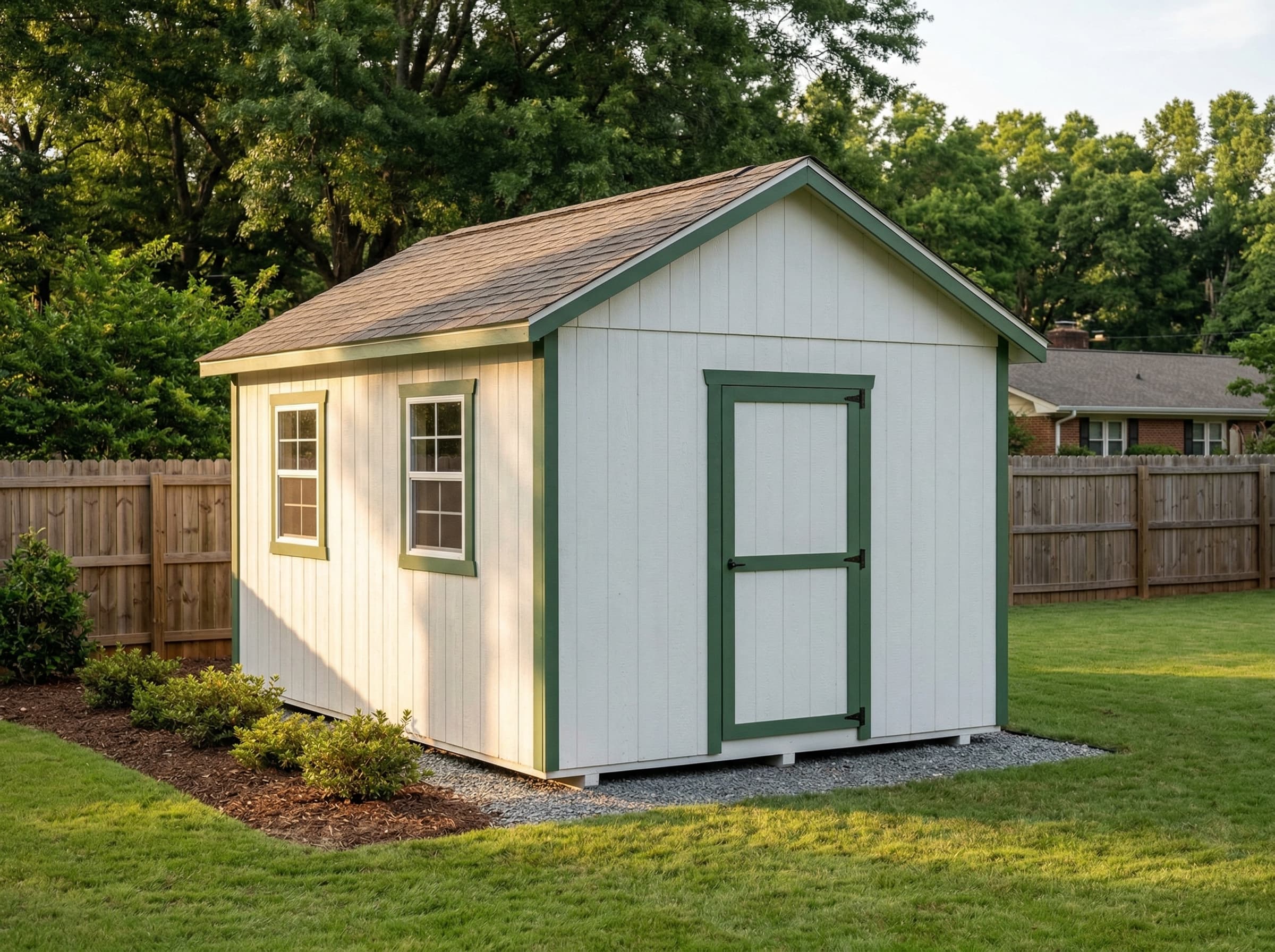

8×16 Gable Narrow Shed Plans

About This Design

The 8×16 is a specialist design — a long, narrow shed that fits where nothing else will. At 128 square feet in an 8-foot-wide footprint, it slides into side yards, fence lines, and the narrow strip between a house and property boundary where wider buildings violate setback rules. The 16-foot depth gives you genuine walk-in storage in a linear layout.

The narrow width means this shed reads as a wall element rather than a freestanding building, which makes it easier to get HOA approval and less visually intrusive from neighboring properties. Two windows spaced along the east wall light the full 16-foot depth, and the rear window provides cross-ventilation.

With 7-foot walls and a 5/12 pitch, the ridge sits at approximately 11 feet 4 inches. The compact 8-foot gable span keeps framing simple and cost-effective — every piece of lumber in the building is 8 feet or 16 feet, both standard stocking lengths.

Key Features

• 128 sq ft in an 8' wide footprint — fits the tightest side yards
• 16' depth for linear storage of long items: lumber, kayaks, pipes
• Two spaced east-wall windows light the full depth evenly
• 5/12 gable roof keeps ridge under 11'6" with 7' walls
• Reads as a wall element, not a freestanding building
• All framing from standard 8' and 16' lumber lengths

Build Notes

An 8×16 uses two 4×6 pressure-treated skids running the 16-foot direction, spaced at 6 feet on center. Floor joists are 2×4 at 16-inch spacing spanning 6-foot bays. The long, narrow footprint makes leveling the foundation critical — any twist amplifies racking over the 16-foot length.

Frame with 2×4 studs at 16 inches on center. The 16-foot side walls use standard 16-foot plates without splicing. At 8 feet wide, 2×4 rafters at 24-inch spacing handle the 5/12 pitch. You need eight rafter pairs plus gable framing — more pairs than wider sheds of the same area because the building is long.

Install let-in corner bracing or structural sheathing on the long walls to resist racking. The 2:1 length-to-width ratio makes this building more susceptible to racking forces than a square shed of the same area.

Best For

The 8×16 is purpose-built for narrow lots and setback-constrained sites. The linear layout excels at storing long items: lumber, PVC pipe, kayaks, canoes, surfboards, and scaffolding. It also works as a linear tool shed with pegboard along one long wall and shelving along the other, creating a walk-through aisle. For side-yard installations, it serves as a garden tool corridor connecting the front and back yards with storage along the way.
