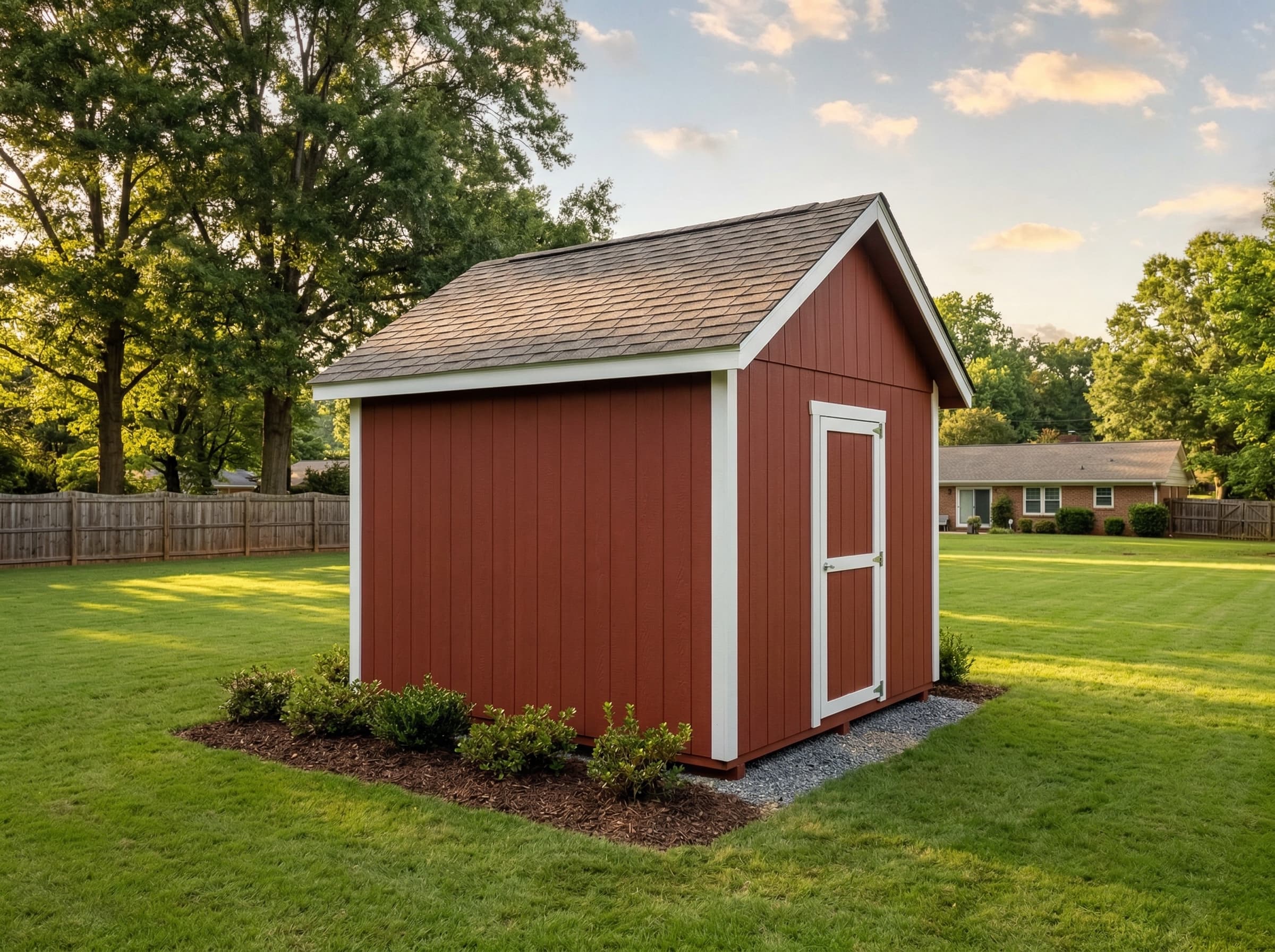

8×8 Gable Tool Shed Plans

About This Design

The 8×8 is the smallest shed that still feels like a room rather than a closet. At 64 square feet, it falls well below the permit exemption threshold in virtually every U.S. jurisdiction, making it the fastest shed to go from plan to built without regulatory delays. The square footprint fits in corners, beside garages, and in tight side yards where larger structures are not an option.

With 7-foot walls and a 5/12 roof pitch, the ridge sits at approximately 10 feet 8 inches — low enough to tuck behind a fence and out of sightlines. The compact profile also means the entire structure can be built in a single weekend by two people with basic framing experience.

A single 36-inch door and a small 24-inch rear window provide access and light. The window is deliberately small to maximize wall space for pegboard, hooks, and narrow shelving — in a shed this size, every square inch of wall counts.

Key Features

• 64 sq ft floor area — below permit thresholds in virtually all jurisdictions
• 5/12 gable roof keeps total height under 11' with 7' walls
• Square 8×8 footprint fits tight corners and side yards
• 24" rear window maximizes wall space for tool storage
• 36" entry door for comfortable access
• Weekend build project for two people — all 8' lumber

Build Notes

An 8×8 is the simplest shed to frame. Two 4×4 pressure-treated skids running 8 feet, spaced at 6 feet on center, support 2×4 floor joists at 16-inch spacing. The entire floor platform weighs under 300 pounds and can be leveled by hand without equipment.

Frame walls with 2×4 studs at 16 inches on center — precut 7-foot studs go straight from the yard to the plate with no trimming. At 8 feet wide, 2×4 rafters at 24-inch spacing are sufficient for the 5/12 pitch. You only need three rafter pairs plus the gable framing.

The 36-inch door header is a doubled 2×6 and the 24-inch window header is a doubled 2×4. Every piece of lumber in this building is 8 feet or shorter, so it fits in a standard pickup bed with the tailgate up.

Best For

The 8×8 is a pure tool shed — hand tools, garden chemicals, hoses, and a push mower. Hang a pegboard on each side wall, add a narrow shelf across the back, and the door side stays clear for the mower. It also works as a secure locking enclosure for outdoor power equipment, pool chemicals, or generator storage. For gardeners, it is an ideal potting shed with a fold-down work surface mounted to the back wall.
