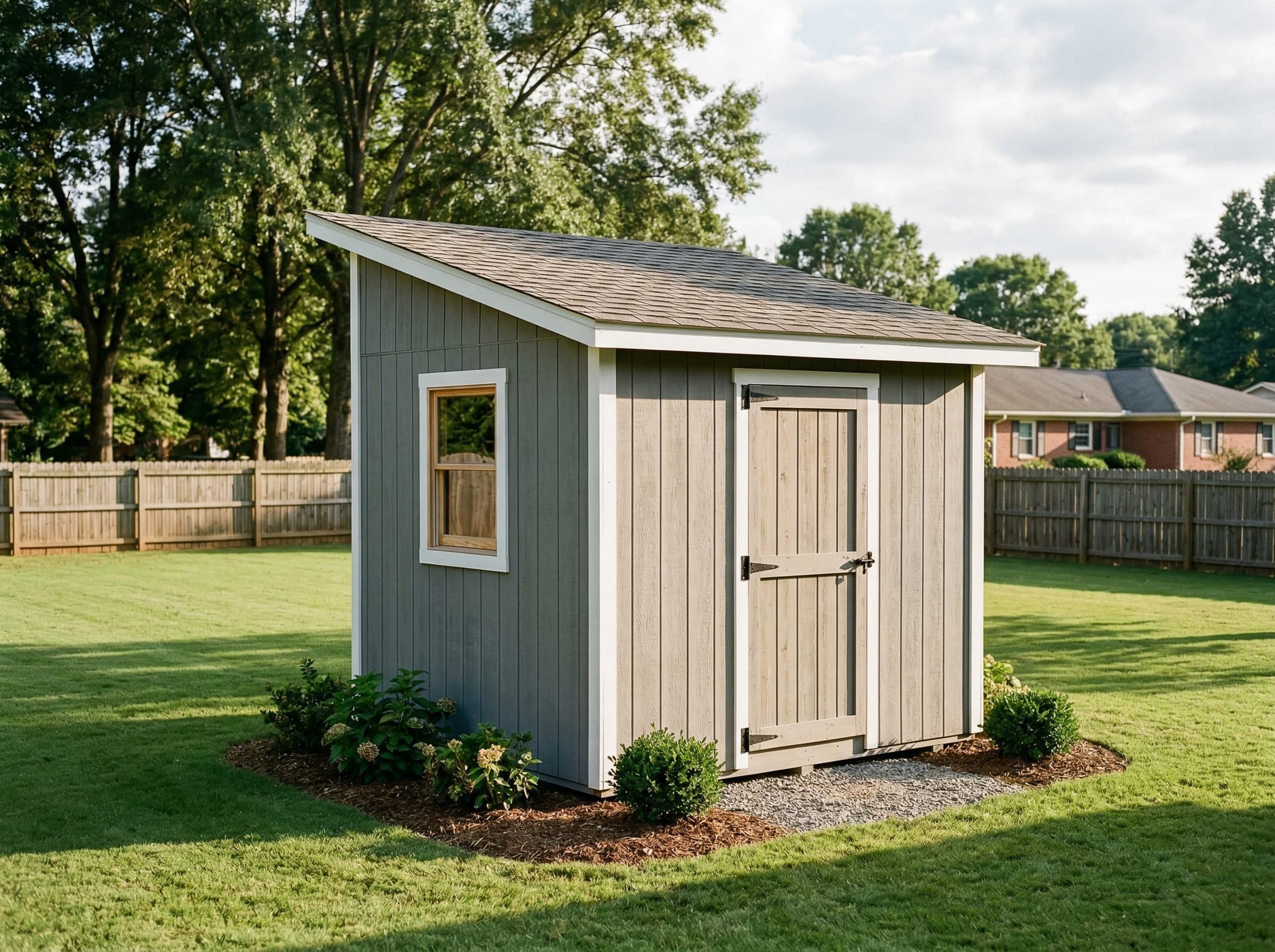

8×12 Lean-To Shed Plans

About This Design

Most backyards have a strip of underused space along a fence line, a garage wall, or the back of the house — a few feet wide and not much use for anything except weeds. The lean-to shed is designed specifically for those spaces. Its single-pitch roof slopes from a tall back wall down to a shorter front wall, shedding water away from the structure it butts against while keeping the overall height low enough to stay well clear of eaves and gutters.

This 8×12 design uses a 3/12 pitch on 8-foot walls, producing a roof that drops about 24 inches across the 8-foot width. The back wall peaks at roughly 10 feet and the front wall stays at 8 feet — the result is a compact, unobtrusive silhouette that rarely triggers HOA objections or requires a zoning variance.

At 96 square feet, this design falls below the 100-square-foot permit exemption threshold in many jurisdictions. A single 36-inch door on the front wall provides clean access, and windows on the back and side walls deliver enough light and airflow that the interior stays dry and pleasant to work in even when the shed is tucked into a shaded corner of the yard.

Key Features

• 96 sq ft — under the 100 sq ft permit-free threshold in many areas
• 3/12 single-pitch roof sheds water away from adjacent structures
• Designed to sit flush against a house, garage, or fence wall
• 36" door on front wall — full access without disrupting the lean-to profile
• Windows on back and side walls — light and ventilation in a tight space
• Low front-wall profile keeps structure clear of existing eaves and gutters

Build Notes

The lean-to frame is one of the simplest roof structures to build. Rafters run straight from the tall back wall top plate to the short front wall top plate with no ridge board, no hip cuts, and no compound angles. On an 8-foot-wide building with a 3/12 pitch, each rafter is approximately 8 feet 4 inches in length with a plumb cut at the top and a bird's mouth at the front bearing wall — the engine calculates the precise cut lengths and angles.

Back wall studs are taller than front wall studs to create the slope — frame them as separate walls and set the front plate height to match your desired pitch. Use 2×4 studs at 16-inch spacing throughout. Rafters are 2×6 at 24-inch spacing for an 8-foot span at 3/12 — more than adequate even in 40-psf snow zones. If attaching the back wall to an existing structure, use lag screws into the host wall studs at 16-inch spacing rather than relying on a ledger board alone. Provide a minimum 2-inch air gap between the shed roof sheathing and any adjacent wall cladding to prevent moisture trapping.

Best For

The lean-to is the right choice when you need storage right where you need it. Positioned along a garage wall, it becomes a dedicated bicycle and garden tool store a few steps from where those items are used. Along the back of the house, it handles pool equipment, outdoor furniture cushions, and seasonal decor without a trek across the yard. Gardeners use this form as a cold frame or potting station by replacing the back wall window with additional glazing to capture reflected heat from a south-facing house wall.
